Removing the Toilet Unit

Flush and clean the toilet. Close the inlet and the outlet seacocks. Loosen the jubilee clips to remove the hose connections on the inlet and the outlet pumps (or in the case of cap and lining option (45 or V45) undo the cap (hexagon nut)). Remove the 4 securing bolts on the base of the syphon pipe (1A or 1MA or V1A). Remove the toilet from the toilet space and take it ashore or on deck.

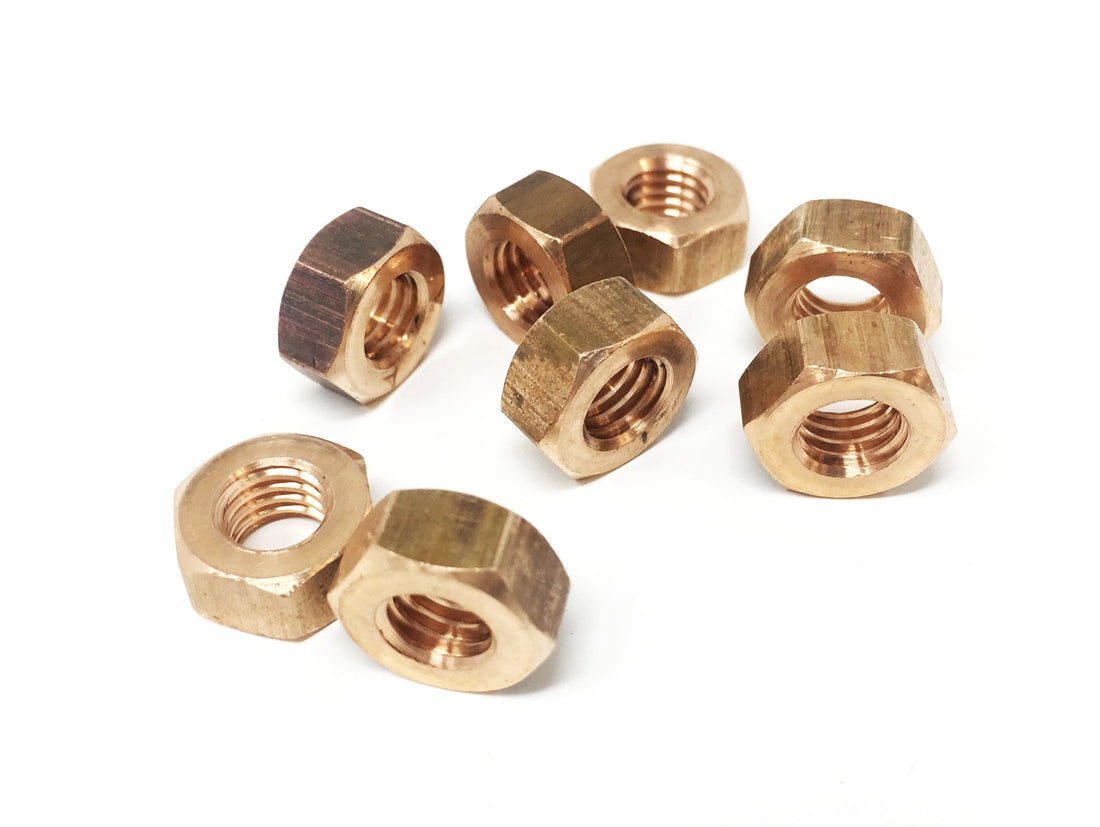

Removal of seat and cover. Remove the nuts and washers from the left and right hand seat pillars (60 or V60). Lift the seat (64A or V64A) and cover (73A or V73A) clear and stow it in a safe position for cleaning.
